Oregon THN128 433MHz temperature transmit/receive library for Arduino. More...

#include <Arduino.h>
#include "ErriezOregonTHN128Receive.h"

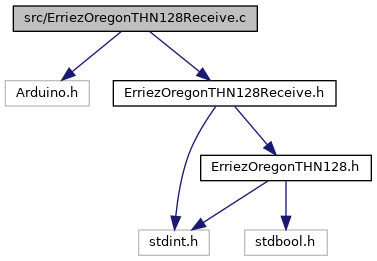

Include dependency graph for ErriezOregonTHN128Receive.c:

Enumerations
enum	RxState_t { StateSearchSync = 0 , StateMid0 = 1 , StateMid1 = 2 , StateEnd = 3 , StateRxComplete = 4 }
	Receive state. More...

Functions
void	rfPinChange (void)
	RF pin level change.

void	OregonTHN128_RxBegin (uint8_t extIntPin)
	Initialize receiver pin.

void	OregonTHN128_RxEnable ()
	Receive enable.

void	OregonTHN128_RxDisable ()
	Receive disable.

bool	OregonTHN128_Available ()
	Check if data received.

bool	OregonTHN128_Read (OregonTHN128Data_t *data)
	Read data.

Detailed Description

Oregon THN128 433MHz temperature transmit/receive library for Arduino.

Source: https://github.com/Erriez/ErriezOregonTHN128 Documentation: https://erriez.github.io/ErriezOregonTHN128

Definition in file ErriezOregonTHN128Receive.c.

Enumeration Type Documentation

◆ RxState_t

enum RxState_t

Receive state.

Enumerator
StateSearchSync	Search for sync
StateMid0	Sample at the middle of a pulse part 1
StateMid1	Sample at the middle of a pulse part 2
StateEnd	Sample at the end of a pulse to store bit
StateRxComplete	Receive complete

Definition at line 44 of file ErriezOregonTHN128Receive.c.

Function Documentation

◆ OregonTHN128_Available()

bool OregonTHN128_Available ( void )

Check if data received.

Return values

true	Data received
false	No data available

Definition at line 358 of file ErriezOregonTHN128Receive.c.

◆ OregonTHN128_Read()

bool OregonTHN128_Read ( OregonTHN128Data_t * data )

Read data.

Parameters

data	Structure OregonTHN128Data_t output

Return values

true	Data received
false	No data available

Definition at line 373 of file ErriezOregonTHN128Receive.c.

◆ OregonTHN128_RxBegin()

void OregonTHN128_RxBegin ( uint8_t extIntPin )

Initialize receiver pin.

Connect RX pin to an external interrupt pin such as INT0 (D2) or INT1 (D3)

Parameters

extIntPin

Definition at line 324 of file ErriezOregonTHN128Receive.c.

◆ OregonTHN128_RxDisable()

void OregonTHN128_RxDisable ( )

Receive disable.

Definition at line 345 of file ErriezOregonTHN128Receive.c.

◆ OregonTHN128_RxEnable()

void OregonTHN128_RxEnable ( )

Receive enable.

Definition at line 336 of file ErriezOregonTHN128Receive.c.

◆ rfPinChange()

void IRAM_ATTR rfPinChange ( void )

RF pin level change.

Definition at line 265 of file ErriezOregonTHN128Receive.c.
