ErriezOregonTHN128.c File Reference

Oregon THN128 433MHz temperature transmit/receive library for Arduino. More...

#include <string.h>
#include <stdio.h>
#include "ErriezOregonTHN128.h"

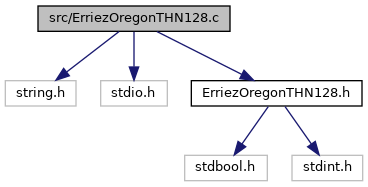

Include dependency graph for ErriezOregonTHN128.c:

Go to the source code of this file.

Macros
#define	SET_ROL_ADDR(x)   (((x) & 0x07) << 0)
#define	GET_ROL_ADDR(x)   (((x) & 0x07) << 0)
#define	SET_CHANNEL(x)   ((((x) - 1) & 0x03) << 6)
#define	GET_CHANNEL(x)   ((((x) >> 6) & 0x03) + 1)
#define	SET_TEMP(x)
#define	GET_TEMP(x)
#define	SIGN_BIT   (1UL << 21)
#define	LOW_BAT_BIT   (1UL << 23)
#define	SET_CRC(x)   ((uint32_t)(x) << 24)
#define	GET_CRC(x)   ((x) >> 24)

Functions
bool	OregonTHN128_CheckCRC (uint32_t rawData)
	Verify checksum. More...
void	OregonTHN128_TempToString (char *temperatureStr, uint8_t temperatureStrLen, int16_t temperature)
	Convert temperature to string. More...
uint32_t	OregonTHN128_DataToRaw (OregonTHN128Data_t *data)
	Convert data structure to 32-bit raw data. More...
bool	OregonTHN128_RawToData (uint32_t rawData, OregonTHN128Data_t *data)
	Cnonvert 32-bit raw data to OregonTHN128Data_t structure. More...

Detailed Description

Oregon THN128 433MHz temperature transmit/receive library for Arduino.

Source: https://github.com/Erriez/ErriezOregonTHN128 Documentation: https://erriez.github.io/ErriezOregonTHN128

Definition in file ErriezOregonTHN128.c.

Function Documentation

OregonTHN128_CheckCRC()

bool OregonTHN128_CheckCRC

(

uint32_t

rawData

)

Verify checksum.

Parameters

rawData

32-bit raw data input

Returns

true: Success, false: error

Definition at line 101 of file ErriezOregonTHN128.c.

OregonTHN128_DataToRaw()

uint32_t OregonTHN128_DataToRaw

(

OregonTHN128Data_t *

data

)

Convert data structure to 32-bit raw data.

Parameters

data

Input

Returns

Output

Definition at line 141 of file ErriezOregonTHN128.c.

OregonTHN128_RawToData()

bool OregonTHN128_RawToData	(	uint32_t	rawData,
		OregonTHN128Data_t *	data
	)

Cnonvert 32-bit raw data to OregonTHN128Data_t structure.

Parameters

rawData	32-bit input
data	output

Returns

CRC true: Success, false: error

Definition at line 180 of file ErriezOregonTHN128.c.

OregonTHN128_TempToString()

void OregonTHN128_TempToString	(	char *	temperatureStr,
		uint8_t	temperatureStrLen,
		int16_t	temperature
	)

Convert temperature to string.

Parameters

temperatureStr	Character buffer
temperatureStrLen	Size of character buffer
temperature	Input temperature

Definition at line 118 of file ErriezOregonTHN128.c.
